Multi-Wing Poland - Type W impellers

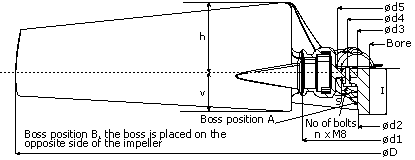

Dimensions

No. of Positions in Hub:	Maximum Diameters for Blade Types:
No. of Positions in Hub:	1W	2W	6W	7W	8W	9W	10W
3LP	912	-	1170	-	1226	-	-
4LP	912	-	1170	-	1226	-	-
5LP	912	-	1170	-	1226	-	-

5	986	1250	1240	1536	1300	1784	1505
6	986	1250	1240	1536	1300	1784	1505
8	1092	1356	1346	1642	1406	1890	1605
10	1182	1446	1436	1732	1496	1980	1700

5HP		-	-	-	-	1600	-
6HP		-	-	-	-	1600	-
8HP		-	-	-	-	1706	-

Pos. in hub	ų Bore	Hub
No.	Min-Max	l	d2	d1	d3	d4	d5	s	n
3LP	Universal Boss (UB)			204	(UB)		130	4	(UB)
4LP				204			130	4
5LP				204			130	4

5	23-38	62	72	274	90	110	140	7.7	9
5	27-38	82	72	274	90	110	140	7.7	9
5	41-48	112	90	274	90	110	140	7.7	9
5	50	112	90	274	90	110	140	7.7	9
5	55	112	130	274	90	110	140	7.7	9
5	60, 65	142	130	274	90	110	140	7.7	9
5	75, 80	142	160	274	120	140	140	7.7	12
6	23-38	62	72	274	90	110	140	7.7	9
6	27-38	82	72	274	90	110	140	7.7	9
6	41-48	112	90	274	90	110	140	7.7	9
6	50	112	90	274	90	110	140	7.7	9
6	55	112	130	274	90	110	140	7.7	9
6	60, 65	142	130	274	90	110	140	7.7	9
6	75, 80	142	160	274	120	140	140	7.7	12
8	23-38	62	72	380	90	110	255	7.7	9
8	27-38	82	72	380	90	110	255	7.7	9
8	41-48	112	90	380	90	110	255	7.7	9
8	50	112	90	380	90	110	255	7.7	9
8	55	112	130	380	90	110	255	7.7	9
8	60, 65	142	130	380	90	110	255	7.7	9
8	75, 80	142	160	380	120	140	255	7.7	12
10	23-38	62	72	470	90	110	340	8.5	9
10	27-38	82	72	470	90	110	340	8.5	9
10	41-48	112	90	470	90	110	340	8.5	9
10	50	112	90	470	90	110	340	8.5	9
10	55	112	130	470	90	110	340	8.5	9
10	60, 65	142	130	470	90	110	340	8.5	9
10	75, 80	142	160	470	120	140	340	8.5	12

5HP	38	82	90	274	90	110	140	14.7	9
5HP	42,48 & 55	112	90	274	90	110	140	14.7	9
5HP	60	142	90	274	90	110	140	14.7	9
5HP	65, 75	142	130	274	90	110	140	14.7	9
6HP	38	82	90	274	90	110	140	14.7	9
6HP	42,48 & 55	112	90	274	90	110	140	14.7	9
6HP	60	142	90	274	90	110	140	14.7	9
6HP	65, 75	142	130	274	90	110	140	14.7	9
8HP	38	82	90	380	90	110	240	14.7	9
8HP	42,48 & 55	112	90	380	90	110	240	14.7	9
8HP	60	142	90	380	90	110	240	14.7	9
8HP	65, 75	142	130	380	90	110	240	14.7	9

Universal Boss (UB)
ų Bore	Hub
Min-Max	l	d2	d3	d4	n
9,5 - 15,0	31	28	75	90	5
12,5 - 22,0	42	40	75	90	5
22,0 - 25,0	52	45	75	90	5
22,0 - 28,0	62	51	75	90	5
27,0 - 40,0	62	73	75	90	5
34,0 - 40,0	82	73	75	90	5
40,0 - 48,0	112	90	75	90	10

Leading edge v±2 (±4 for 10W)
Pitch	15ŗ	20ŗ	25ŗ	30ŗ	35ŗ	40ŗ	45ŗ	50ŗ
6W	-	-	30	37	43	50	58	61
7W	-	25	31	36	42	47	52	56
8W	22	29	36	39	42	52	61	68
9W	-	31	37	45	51	59	65	72
10W	-	36	57	78	95	116	137	-

Trailing edge h±2 (±4 for 10W)
Pitch	15ŗ	20ŗ	25ŗ	30ŗ	35ŗ	40ŗ	45ŗ	50ŗ
6W	-	-	65	75	84	93	101	106
7W	-	63	72	80	89	96	103	110
8W	49	57	65	69	73	82	88	94
9W	-	72	84	95	105	115	123	130
10W	-	143	160	177	194	211	228	-
